1N4933 - FAST RECOVERY RECTIFIER

1N4933 Description

RECTRON SEMICONDUCTOR TECHNICAL SPECIFICATION FAST RECOVERY RECTIFIER VOLTAGE RANGE 50 to 600 Volts CURRENT 1.0 Ampere 1N4933 THRU 1N4937 .

1N4933 Features

* Low cost
* Low leakage
* Low forward voltage drop
* High current capability DO-41 MECHANICAL DATA
* Case: Molded plastic
* Epoxy: Device has UL flammability classification 94V-O
* Lead: MIL-STD-202E method 208C guaranteed
* Mounting position: Any
* Weight: 0.3

📥 Download Datasheet

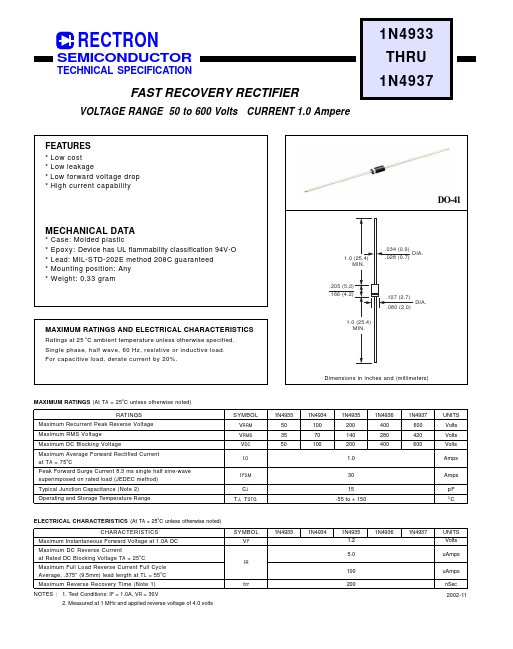

Preview of 1N4933 PDF

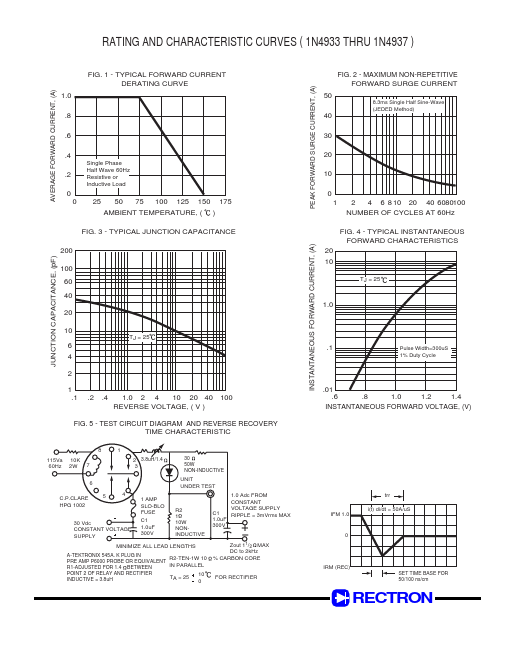

datasheet Preview Page 2

Datasheet Details

Part number
1N4933
Manufacturer
Rectron
File Size
27.93 KB
Datasheet
1N4933-Rectron.pdf
Description
FAST RECOVERY RECTIFIER
