1N4934, 1N4933 - FAST RECOVERY RECTIFIER

1N4934 Description

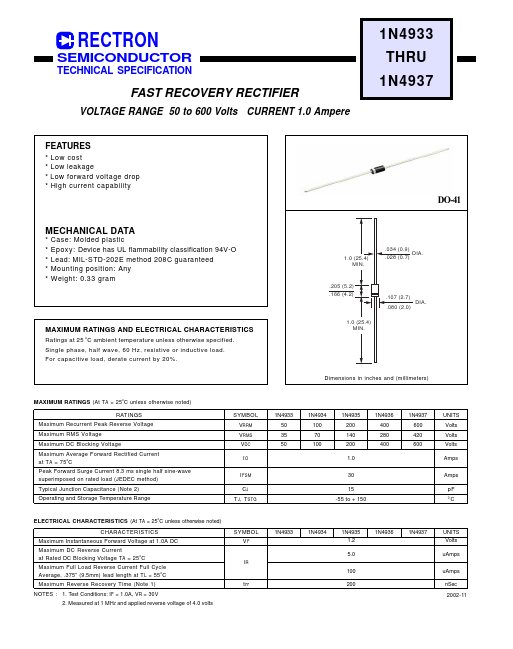

RECTRON SEMICONDUCTOR TECHNICAL SPECIFICATION FAST RECOVERY RECTIFIER VOLTAGE RANGE 50 to 600 Volts CURRENT 1.0 Ampere 1N4933 THRU 1N4937 .

1N4934 Features

* Low cost
* Low leakage
* Low forward voltage drop
* High current capability DO-41 MECHANICAL DATA
* Case: Molded plastic
* Epoxy: Device has UL flammability classification 94V-O
* Lead: MIL-STD-202E method 208C guaranteed
* Mounting position: Any
* Weight: 0.3

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N4934, 1N4933. Please refer to the document for exact specifications by model.

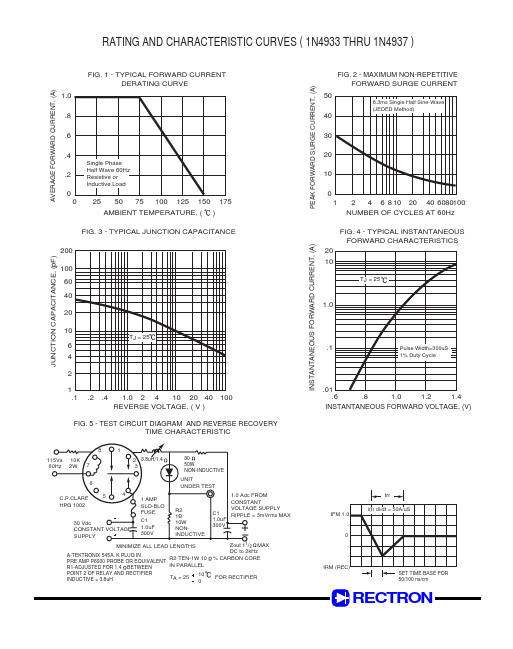

datasheet Preview Page 2

Datasheet Details

Part number
1N4934, 1N4933
Manufacturer
Rectron
File Size
27.93 KB
Datasheet
1N4933-Rectron.pdf
Description
FAST RECOVERY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: 1N4934, 1N4933.
Please refer to the document for exact specifications by model.
