1N4935 - FAST RECOVERY RECTIFIER

This page provides the datasheet information for the 1N4935, a member of the 1N4933 FAST RECOVERY RECTIFIER family.

Datasheet Summary

Features

  • Low cost.
  • Low leakage.
  • Low forward voltage drop.
  • High current capability DO-41.

📥 Download Datasheet

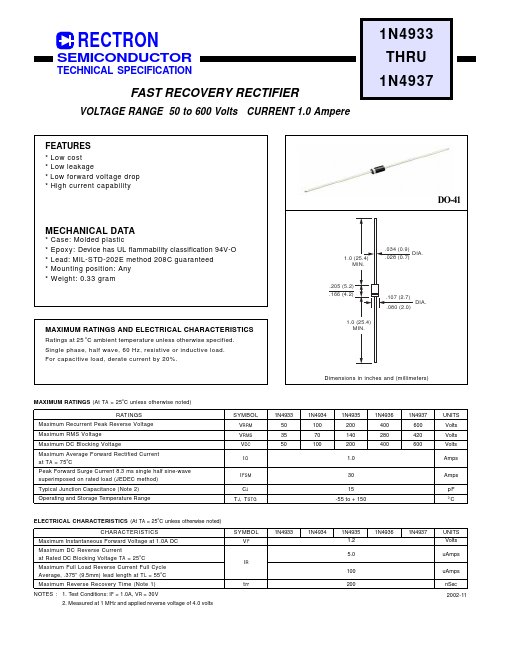

Datasheet preview – 1N4935

Datasheet Details

Part number 1N4935
Manufacturer Rectron
File Size 27.93 KB
Description FAST RECOVERY RECTIFIER
Datasheet download datasheet 1N4935 Datasheet

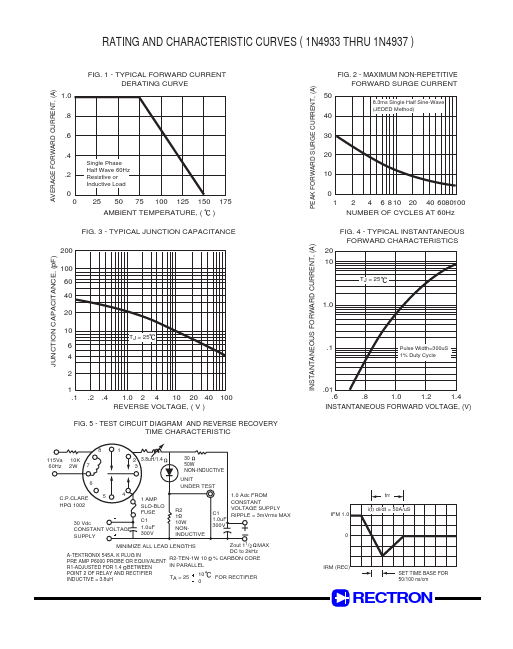

Additional preview pages of the 1N4935 datasheet.

📁 Similar Datasheet

  • 1N4935 - FAST RECOVERY RECTIFIER DIODES (Sunmate)
  • 1N4935 - 1.0 Ampere Fast Recovery Rectifiers (Fairchild Semiconductor)
  • 1N4935 - Axial Leaded Fast Recovery Rectifiers (Formosa MS)
  • 1N4935 - 1A Fast Recovery Rectifiers (GOOD-ARK)
  • 1N4935 - FAST RECOVERY RECTIFIER (ZOWIE)
  • 1N4935 - FAST RECOVERY RECTIFIERS (Kingtronics)
  • 1N4935 - Fast Switching Plastic Rectifier (Vishay)
  • 1N4935 - 1.0A FAST RECOVERY DIODE (WON-TOP)
  • 1N4935 - 1.0A FAST RECOVERY RECTIFIER (Diodes)
  • 1N4935 - 1.0 Amp. Fast Recovery Rectifiers (JGD)
Other Datasheets by Rectron
  • 1N4933 - FAST RECOVERY RECTIFIER
  • 1N4934 - FAST RECOVERY RECTIFIER
  • 1N4936 - FAST RECOVERY RECTIFIER
  • 1N4937 - FAST RECOVERY RECTIFIER
  • 1N4942 - FAST RECOVERY RECTIFIER
  • 1N4944 - FAST RECOVERY RECTIFIER
  • 1N4946 - FAST RECOVERY RECTIFIER
  • 1N4947 - FAST RECOVERY RECTIFIER

Full PDF Text Transcription

Click to expand full text
RECTRON SEMICONDUCTOR TECHNICAL SPECIFICATION FAST RECOVERY RECTIFIER VOLTAGE RANGE 50 to 600 Volts CURRENT 1.0 Ampere 1N4933 THRU 1N4937 FEATURES * Low cost * Low leakage * Low forward voltage drop * High current capability DO-41 MECHANICAL DATA * Case: Molded plastic * Epoxy: Device has UL flammability classification 94V-O * Lead: MIL-STD-202E method 208C guaranteed * Mounting position: Any * Weight: 0.33 gram MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 oC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. 1.0 (25.4) MIN. .034 (0.9) DIA. .028 (0.7) .205 (5.2) .166 (4.2) 1.0 (25.4) MIN. .107 (2.7) DIA. .080 (2.
