1N5817W - SCHOTTKY BARRIER RECTIFIER

Rectron

📥 Download Datasheet

1N5817W Datasheet Preview — Preview of 1N5817W PDF

Datasheet Details

Part number	1N5817W
Manufacturer	Rectron
File Size	173.08 KB
Description	SCHOTTKY BARRIER RECTIFIER
Datasheet	1N5817W-Rectron.pdf

1N5817W Product details

Description

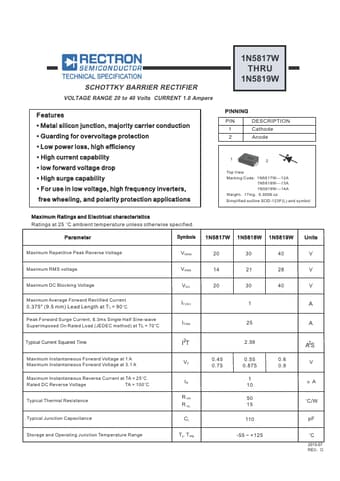

1 Cathode 2 Anode 1 14A 2 Top View Marking Code: 1N5817W---12A 1N5818W---13A 1N5819W---14A Weight˖17mgˈ0.0006 oz Simplified outline SOD-123F(L) and symbol Maximum Ratings and Electrical characteristics Ratings at 25 eC ambient temperature unless otherwise specified.Parameter Symbols 1N5817W 1N5818W 1N5819W Units Maximum Repetitive Peak Reverse Voltage VRRM 20 30 40 V Maximum RMS voltage VRMS 14 21 28 V Maximum DC Blocking Voltage Maximum Average Forward Rectified Current 0.375"

Features

Metal silicon junction, majority carrier conduction.
Guarding for overvoltage protection.
Low power loss, high efficiency.
High current capability.
low forward voltage drop.
High surge capability.
For use in low voltage, high frequency inverters, free wheeling, and polarity protection.
