FR302, FR301 - FAST RECOVERY RECTIFIER

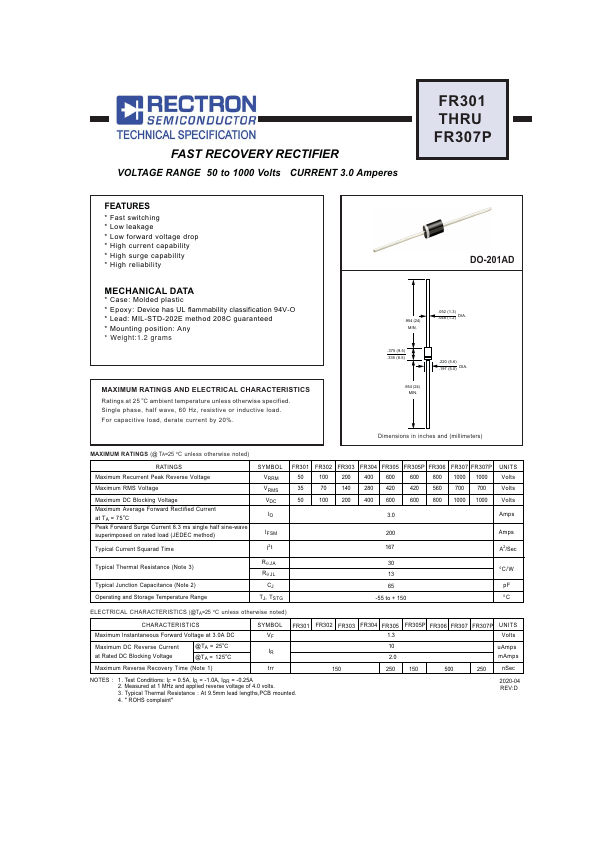

FR302 Description

FAST RECOVERY RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 3.0 Amperes FR301 THRU FR307P .

FR302 Features

* Fast switching
* Low leakage
* Low forward voltage drop
* High current capability
* High surge capability
* High reliability DO-201AD MECHANICAL DATA
* Case: Molded plastic
* Epoxy: Device has UL flammability classification 94V-O
* Lead: MIL-STD-202E method 20

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FR302, FR301. Please refer to the document for exact specifications by model.

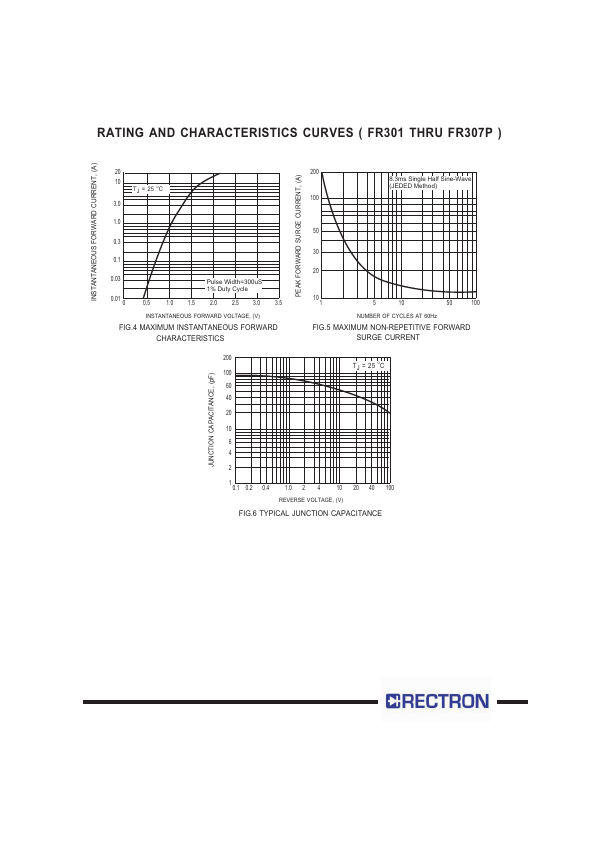

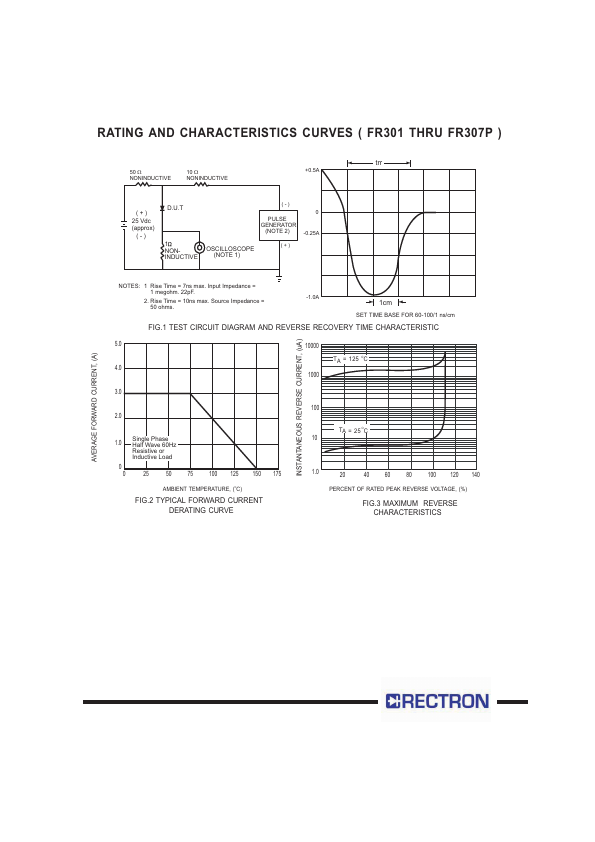

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FR302, FR301
Manufacturer
Rectron
File Size
331.80 KB
Datasheet
FR301-Rectron.pdf
Description
FAST RECOVERY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: FR302, FR301.
Please refer to the document for exact specifications by model.
