MM1Z5225B, MM1Z5221B, SURFACE MOUNT ZENER DIODE

RECTRON SEMICONDUCTOR TECHNICAL SPECIFICATION MM1Z5221BMM1Z 5261B SURFACE MOUNT ZENER DIODE VOLTAGE RANGE 2.4 to 47 Volts POWER RATING 500 mWatts F.

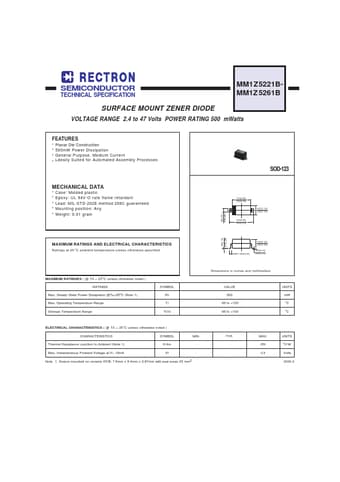

datasheet Preview Page 1 from Datasheet4u.com

MM1Z5221B-Rectron.pdf

MM1Z5225B Datasheet Preview — This datasheet PDF includes multiple part numbers: MM1Z5225B, MM1Z5221B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MM1Z5225B, MM1Z5221B

Manufacturer:

Rectron

File Size:

1.34 MB

Description:

SURFACE MOUNT ZENER DIODE

Note:

This datasheet PDF includes multiple part numbers: MM1Z5225B, MM1Z5221B.
Please refer to the document for exact specifications by model.

Features

* Planar Die Construction
* 500mW Power Dissipation
* General Purpose, Medium Current
* Ldeally Suited for Automated Assembly Processes MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-O rate flame retardant
* Lead: MIL-STD-202E method 208C guaranteed
* Mounting
