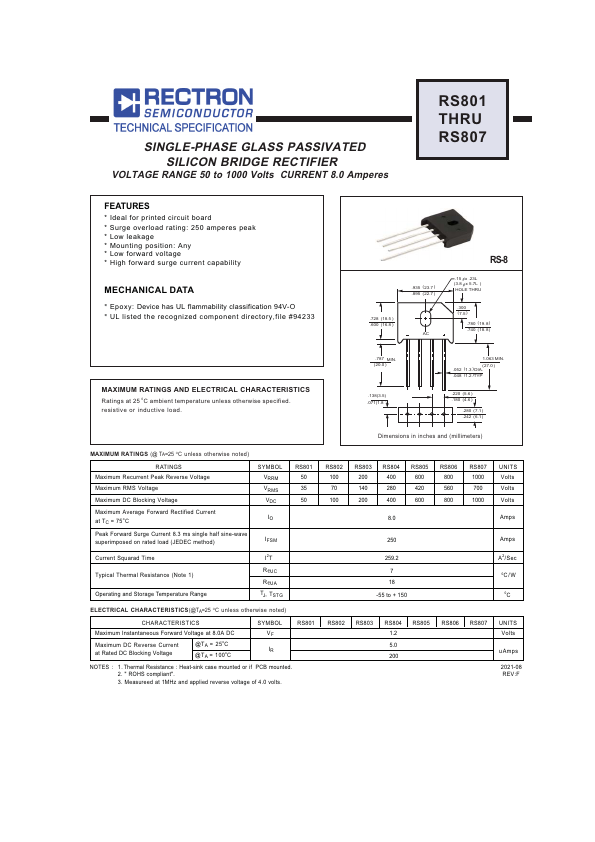

RS801 - SILICON BRIDGE RECTIFIER

Rectron

RS801 Datasheet Preview — Preview of RS801 PDF

Datasheet Details

Part number	RS801
Manufacturer	Rectron
File Size	114.42 KB
Description	SILICON BRIDGE RECTIFIER
Datasheet	RS801-Rectron.pdf

RS801 Product details

Description

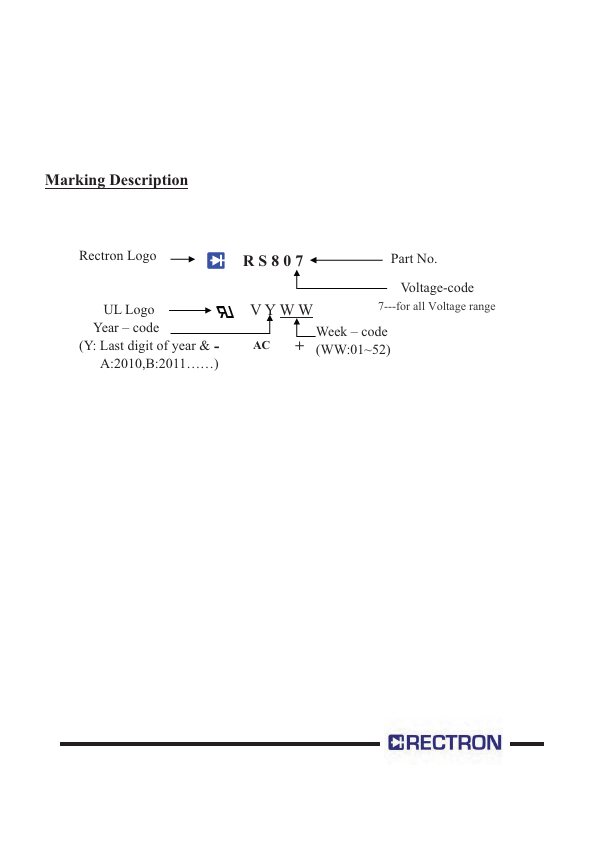

Rectron Logo UL Logo Year code (Y: Last digit of year & - A:2010,B:2011……) RS807 Part No.Voltage-code VYWW 7---for all Voltage range Week code AC + (WW:01~52) PACKAGING OF DIODE AND BRIDGE RECTIFIERS BULK PACK PACKAGE PACKING CODE RS-6/RS-8 -B EA PER BOX 400 INNER BOX SIZE (mm) 214 235 56 CARTON SIZE (mm) 435 245 186 EA PER CARTON 2,400 GROSS WEIGHT(Kg) 16.0 DISCLAIMER NOTICE Rectron Inc reserves the right to make changes without notice to a

Features

Ideal for printed circuit board.
Surge overload rating: 250 amperes peak.
Low leakage.
Mounting position: Any.
Low forward voltage.
High forward surge current capability.
