2SK1305

Silicon N-Channel MOSFET

2SK1305 Features

* Low on-resistance

* High speed switching

* Low drive current

* 4 V gate drive device  Can be driven from 5 V source

* Suitable for motor drive, DC-DC converter, power switch and solenoid drive Outline RENESAS Package code: PRSS0003AD-A (Package name: TO-22

2SK1305 Datasheet (72.71 KB)

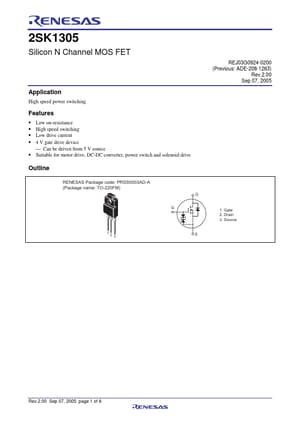

Preview of 2SK1305 PDF

Datasheet Details

Part number:

2SK1305

Manufacturer:

Renesas ↗

File Size:

72.71 KB

Description:

Silicon n-channel mosfet.
