8SLVP1102

2.5V LVPECL Output Fanout Buffer

8SLVP1102 Features

* Two low skew, low additive jitter LVPECL output pairs

* Differential PCLK, nPCLK pair can accept the following differential input levels: LVDS, LVPECL, CML

* Maximum input clock frequency: 2GHz

* Output skew: 5ps (typical)

* Propagation delay: 250ps (maximum

8SLVP1102 General Description

The 8SLVP1102 is a high-performance differential LVPECL fanout buffer. The device is designed for the fanout of high-frequency, very low additive phase-noise clock and data signals. The 8SLVP1102 is characterized to operate from a 3.3V or 2.5V power supply. Guaranteed output-to-output and part-to-pa.

8SLVP1102 Datasheet (0.97 MB)

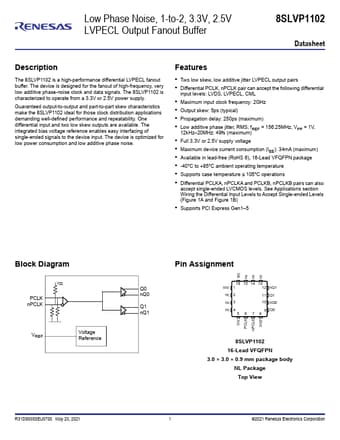

Preview of 8SLVP1102 PDF

Datasheet Details

Part number:

8SLVP1102

Manufacturer:

Renesas ↗

File Size:

0.97 MB

Description:

2.5v lvpecl output fanout buffer.
