CA3160 BiMOS Operational Amplifier

CA3160 Description

DATASHEET CA3160 4MHz, BiMOS Operational Amplifier with MOSFET Input/CMOS Output FN976 Rev 5.00 June 2004 The CA3160 is an operational amplifier th.

CA3160 Features

* MOSFET Input Stage Provides: - Very High ZI
* . . . 1.5T (1.5 x 1012) (Typ) - Very Low II
* . . . 5pA (Typ) at 15V Operation
* . . . 2pA (Typ) at 5V Operation
* Common-Mode Input Voltage Range Includes Negative Su

CA3160 Applications

* A complementary symmetry MOS (CMOS) transistor-pair, capable of swinging the output voltage to within 10mV of either supply voltage terminal (at very high values of load impedance), is employed as the output circuit. The CA3160 Series circuits operate at supply voltages ranging from 5V to 16V, or 

📥 Download Datasheet

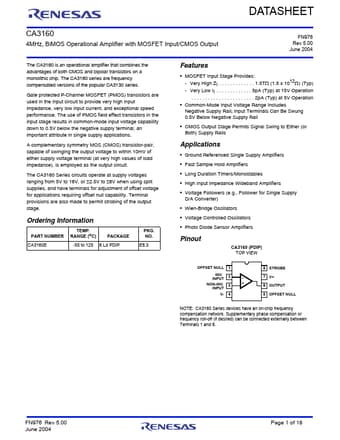

Preview of CA3160 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CA3160
Manufacturer
Renesas ↗
File Size
1.11 MB
Datasheet
CA3160-Renesas.pdf
Description
BiMOS Operational Amplifier
