DA9281 8-Channel System PMIC supporting DDR VTT

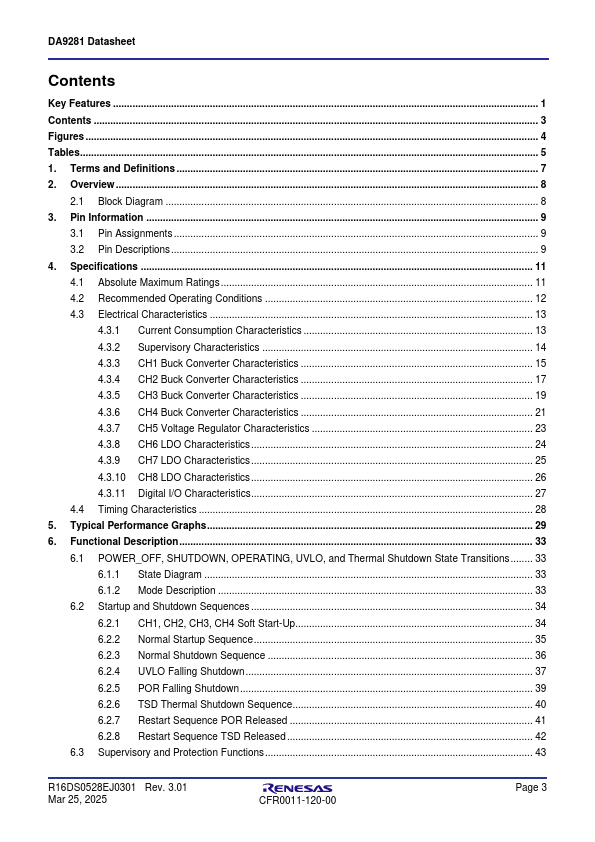

9 4. Specifications 11 4.1 Absolute Maximum Ratings 11 4.2 Recommended Operating Conditions 12 4.3 Electrical Characteristics 13 4.3.1 Current Consumption Characteristics 13 4.3.2 Supervisory Characteristics 14 4.3.3 CH1 Buck Converter Characteristics 15 4.3.4 CH2 Buck Converter Characteris.

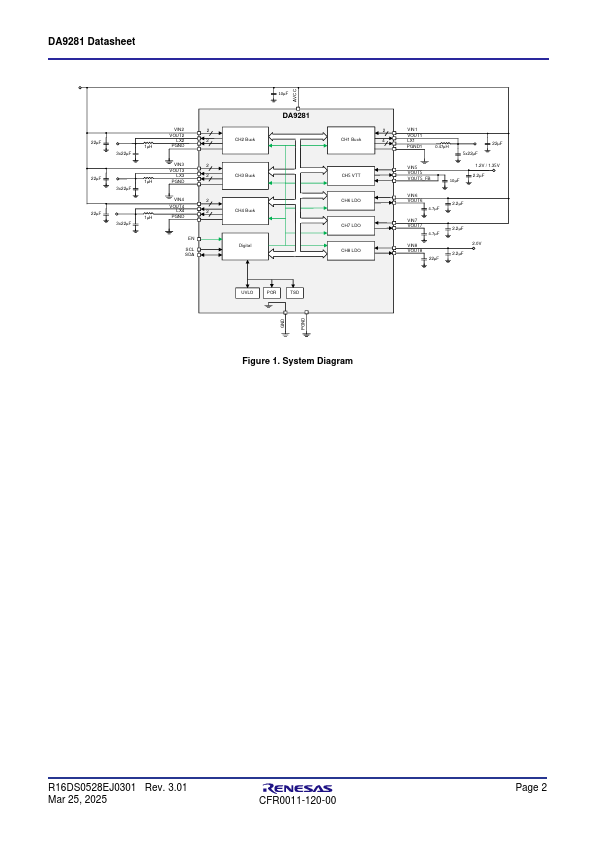

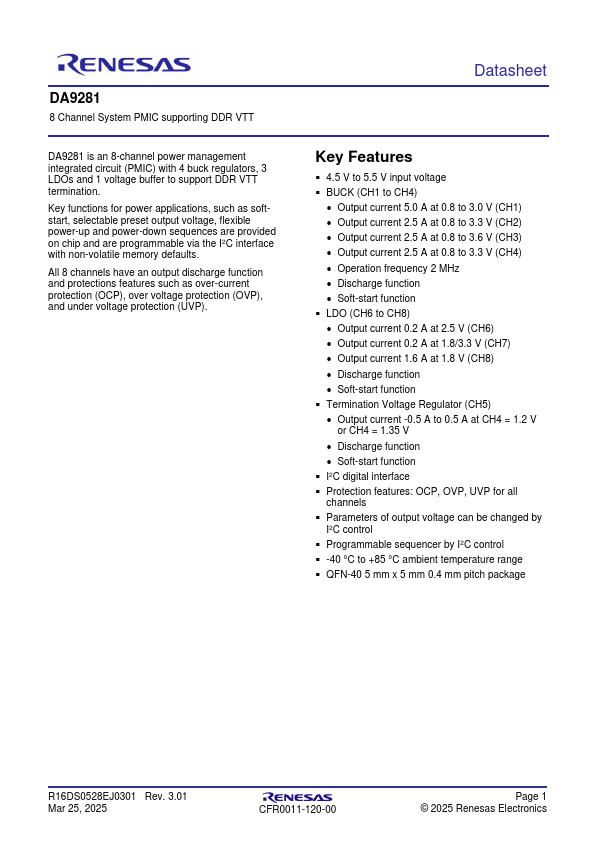

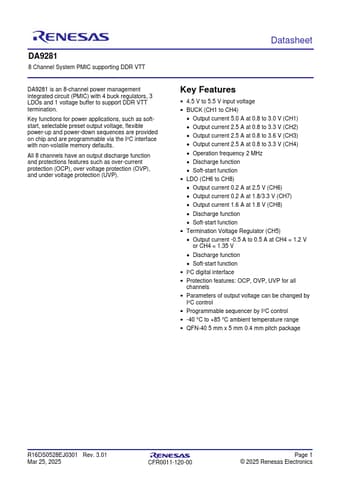

DA9281 8 Channel System PMIC supporting DDR VTT DA9281 is an 8-channel power management integrated circuit (PMIC) with 4 buck regulators, 3 LDOs and 1 voltage buffer to support DDR VTT termination. Key functions for power applications, such as softstart, selectable preset output voltage, flexible power-up and power-down sequences are provided on chip and are programmable via the I2C interface with non-volatile memory defaults. All 8 channels have an output discharge function and protections feat.

DA9281 Features

* such as over-current protection (OCP), over voltage protection (OVP), and under voltage protection (UVP). Datasheet Key Features ▪ 4.5 V to 5.5 V input voltage ▪ BUCK (CH1 to CH4)

* Output current 5.0 A at 0.8 to 3.0 V (CH1)

* Output current 2.5 A at 0.8 to 3.3 V (CH2)

* Out
