FS40SM-6A Datasheet, Fet, Renesas

FS40SM-6A Features

  • Fet
  • Drive voltage : 10 V VDSS : 300 V rDS(ON) (max) : 0.105 Ω ID : 40 A Outline TO-3P 4 2, 4 1 1. 2. 3. 4. Gate Drain Source Drain 1 2 3 3 Ap

PDF File Details

Part number:

FS40SM-6A

Manufacturer:

Renesas ↗

File Size:

179.00kb

Download:

📄 Datasheet

Description:

High-speed switching use nch power mos fet.

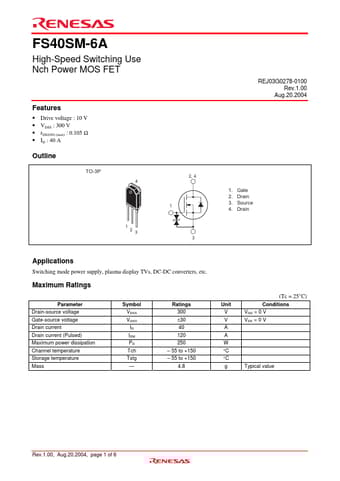

Datasheet Preview: FS40SM-6A 📥 Download PDF (179.00kb)
Page 2 of FS40SM-6A Page 3 of FS40SM-6A

FS40SM-6A Application

  • Applications Switching mode power supply, plasma display TVs, DC-DC converters, etc. Maximum Ratings (Tc = 25°C) Parameter Drain-source voltage Gat
