HD74LS273P, HD74LS273
Manufacturer:
File Size:
88.28 KB
Description:
Octal d-type positive-edge-triggered flip-flops.
Note:
This datasheet PDF includes multiple part numbers: HD74LS273P, HD74LS273.
Please refer to the document for exact specifications by model.
HD74LS273P, HD74LS273, Octal D-type Positive-edge-triggered Flip-Flops

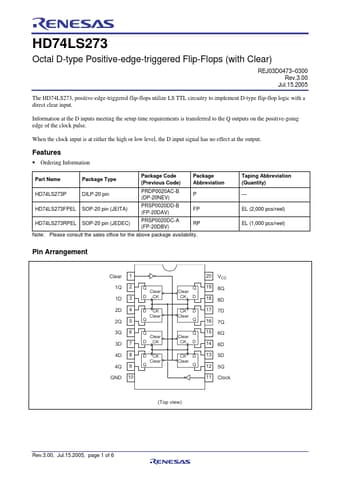

HD74LS273 Octal D-type Positive-edge-triggered Flip-Flops (with Clear) REJ03D0473 0300 Rev.3.00 Jul.15.2005 The HD74LS273, positive-edge-triggered flip-flops utilize LS TTL circuitry to implement D-type flip-flop logic with a direct clear input.
Information at the D inputs meeting the setup time requirements is transferred to the Q outputs on the positive-going edge of the clock pulse.
When the clock input is at either the high or low level, the D input signal has no effect at the ou
HD74LS273P Features
* Ordering Information Part Name Package Type Package Code (Previous Code) Package Abbreviation HD74LS273P DILP-20 pin PRDP0020AC-B (DP-20NEV) P HD74LS273FPEL SOP-20 pin (JEITA) PRSP0020DD-B FP (FP-20DAV) HD74LS273RPEL SOP-20 pin (JEDEC) PRSP0020DC-A (FP-20DBV) RP Note: Plea
