ICS84330CYIL, ICS84330CI, Crystal-to-LVPECL Frequency Synthesizer

720MHz, Low Jitter, Crystal-to-LVPECL Frequency Synthesizer 84330CI Data Sheet General .
The 84330CI is a general purpose, single output high frequency synthesizer.

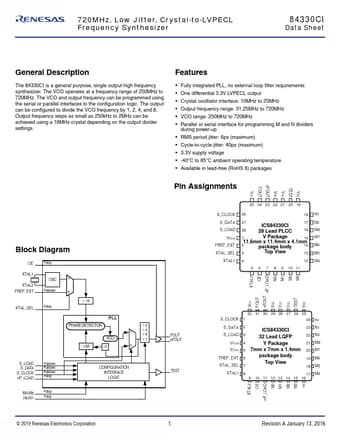

datasheet Preview Page 1 from Datasheet4u.com

ICS84330CI-Renesas.pdf

ICS84330CYIL Datasheet Preview — This datasheet PDF includes multiple part numbers: ICS84330CYIL, ICS84330CI. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ICS84330CYIL, ICS84330CI

Manufacturer:

Renesas ↗

File Size:

524.06 KB

Description:

Crystal-to-LVPECL Frequency Synthesizer

Note:

This datasheet PDF includes multiple part numbers: ICS84330CYIL, ICS84330CI.
Please refer to the document for exact specifications by model.

Features

* Fully integrated PLL, no external loop filter requirements
* One differential 3.3V LVPECL output
* Crystal oscillator interface: 10MHz to 25MHz
* Output frequency range: 31.25MHz to 720MHz
* VCO range: 250MHz to 720MHz
* Parallel or serial interface
