IDT49FCT805A, IDT49FCT805, FAST CMOS BUFFER/CLOCK DRIVER

IDT49FCT805/A FAST CMOSBUFFER/CLOCKDRIVER COMMERCIAL AND INDUSTRIAL TEMPERATURE RANGE FAST CMOS BUFFER/CLOCK DRIVER IDT49FCT805/A .
The 49FCT805 is a non-inverting buffer/clock driver built using advanced dual metal CMOS technology.

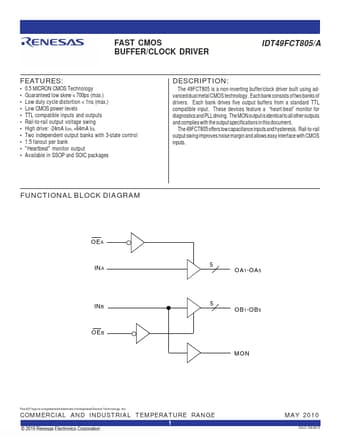

datasheet Preview Page 1 from Datasheet4u.com

IDT49FCT805-Renesas.pdf

IDT49FCT805A Datasheet Preview — This datasheet PDF includes multiple part numbers: IDT49FCT805A, IDT49FCT805. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IDT49FCT805A, IDT49FCT805

Manufacturer:

Renesas ↗

File Size:

190.35 KB

Description:

FAST CMOS BUFFER/CLOCK DRIVER

Note:

This datasheet PDF includes multiple part numbers: IDT49FCT805A, IDT49FCT805.
Please refer to the document for exact specifications by model.

Features

* 0.5 MICRON CMOS Technology
* Guaranteed low skew < 700ps (max. )
* Low duty cycle distortion < 1ns (max. )
* Low CMOS power levels
* TTL compatible inputs and outputs
* Rail-to-rail output voltage swing
* High drive: -24mA IOH, +64mA IOL
