IDT5V2305 HIGH PERFORMANCE CLOCK BUFFER

The IDT5V2305 is a high performance, low skew clock buffer that operates up to 200MHz. One bank of five outputs provides low skew copies of CLK. Through the use of control pin G, the outputs of bank Y(0:4) can be placed in a low state regardless of CLK input. The device operates in 2.5V and 3.3V en.

IDT5V2305 Features

* High performance 1:5 clock driver for general purpose applications

* Operates up to 170MHz at VDD = 2.5V

* Operates up to 200MHz at VDD = 3.3V

* Pin-to-pin skew < 75ps at 3.3V operation

* VDD range: 2.3V to 3.6V

* Output enable glitch suppression

IDT5V2305-Renesas.pdf

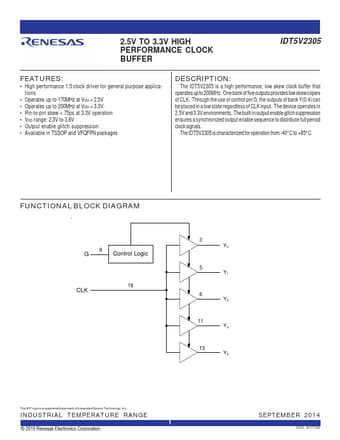

Preview of IDT5V2305 PDF
IDT5V2305 Datasheet Preview Page 2 IDT5V2305 Datasheet Preview Page 3

Datasheet Details

Part number:

IDT5V2305

Manufacturer:

Renesas ↗

File Size:

284.56 KB

Description:

High performance clock buffer.
