ISL22326

Dual Digitally Controlled Potentiometers

ISL22326 Features

* ▪ Two potentiometers in one package ▪ 128 resistor taps ▪ I2C serial interface

* Three address pins, up to eight devices/bus ▪ Non-volatile storage of wiper position ▪ Wiper resistance: 70Ω typical at VCC = 3.3V ▪ Shutdown mode ▪ Shutdown current 5µA max ▪ Power supply: 2.7V to 5.5V ▪ 50kΩo

ISL22326 General Description

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 2. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 2.1 A.

ISL22326 Datasheet (908.26 KB)

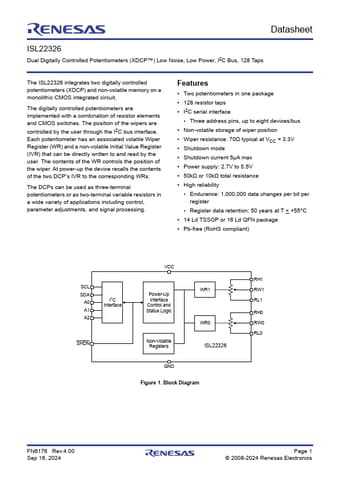

Preview of ISL22326 PDF

Datasheet Details

Part number:

ISL22326

Manufacturer:

Renesas ↗

File Size:

908.26 KB

Description:

Dual digitally controlled potentiometers.
Datasheet ISL22326 Dual Digitally Controlled Potentiometers (XDCP™) Low Noise, Low Power, I2C Bus, 128 Taps The ISL22326 integrates two digitally con.
