ISL3331 Dual Protocol (RS-232/RS-485) Transceivers

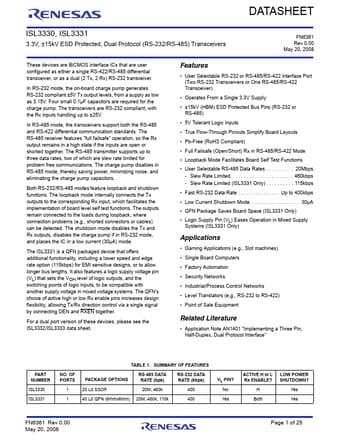

DATASHEET ISL3330, ISL3331 3.3V, ±15kV ESD Protected, Dual Protocol (RS-232/RS-485) Transceivers FN6361 Rev 0.00 May 20, 2008 These devices are BiCMOS interface ICs that are user configured as either a single RS-422/RS-485 differential transceiver, or as a dual (2 Tx, 2 Rx) RS-232 transceiver. In RS-232 mode, the on-board charge pump generates RS-232 compliant ±5V Tx output levels, from a supply as low as 3.15V. Four small 0.1µF capacitors are required for the charge pump. The transceivers ar.

ISL3331 Features

* "full failsafe" operation, so the Rx output remains in a high state if the inputs are open or shorted together. The RS-485 transmitter supports up to three data rates, two of which are slew rate limited for problem free communications. The charge pump disables in RS-485 mode, thereby saving power, m

ISL3331 Datasheet (1.37 MB)
