ISL43141

Analog Switches

ISL43141 Features

* AT A GLANCE ISL43140 ISL43141 ISL43142 (No longer available or supported) Number of Switches 4 4 4 Configuration All NC All NO 2 NC / 2 NO 10.8V RON 10.8V tON / tOFF 4.5V RON 4.5V tON / tOFF 4.5V RON 4.5V tON / tOFF 2.7V RON 2.7V tON / tOFF Packages 50 50 50 30ns / 18ns 30ns / 18

ISL43141 General Description

PIN V+ VGND IN COM NO NC N.C. FUNCTION Positive Power Supply Input Negative Power Supply Input. Connect to GND for Single Supply Configurations. Ground Connection Digital Control Input Analog Switch Common Pin Analog Switch Normally Open Pin Analog Switch Normally Closed Pin No Internal Connection.

ISL43141 Datasheet (967.94 KB)

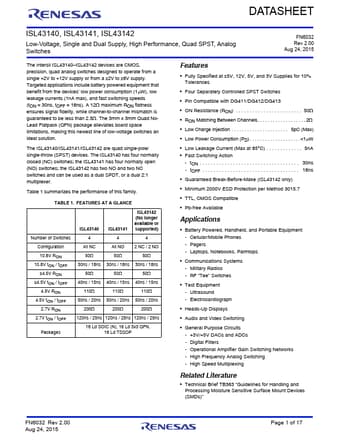

Preview of ISL43141 PDF

Datasheet Details

Part number:

ISL43141

Manufacturer:

Renesas ↗

File Size:

967.94 KB

Description:

Analog switches.
DATASHEET ISL43140, ISL43141, ISL43142 Low-Voltage, Single and Dual Supply, High Performance, Quad SPST, Analog Switches FN6032 Rev 2.00 Aug 24, 201.
