ISL43840 Datasheet - Renesas

ISL43840 - Dual 4 to 1 Multiplexer Analog Switch

DATASHEET ISL43840 Low-Voltage, Single and Dual Supply, Dual 4 to 1 Multiplexer Analog Switch with Enable FN6056 Rev 2.00 Mar 13, 2006 The Intersil ISL43840 device is a precision, bidirectional, analog switches configured as a a dual 4 channel multiplexer/ demultiplexer designed to operate from a single +2V to +12V supply or from a 2V to 6V supply.

The device has two enable bar pins to simultaneously open all signal paths of bank A and B.

ON resistance of 39 with a 5V supply and 125 wit

ISL43840 Features

* AT A GLANCE CONFIGURATION DUAL 4:1 MUX 5V RON 5V tON / tOFF 12V RON

ISL43840-Renesas.pdf

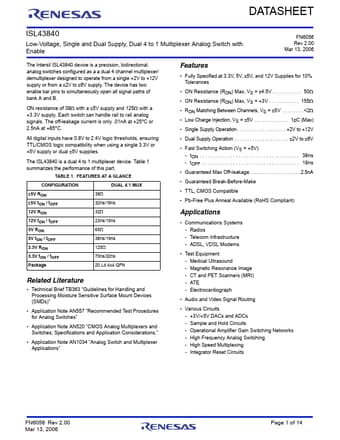

Preview of ISL43840 PDF
ISL43840 Datasheet Preview Page 2 ISL43840 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL43840

Manufacturer:

Renesas ↗

File Size:

744.07 KB

Description:

Dual 4 to 1 multiplexer analog switch.
