ISL51002 - 10-Bit Video Analog Front End

Product Overview

Renesas

Part number	ISL51002
Manufacturer	Renesas
File Size	1.12 MB
Description	10-Bit Video Analog Front End
Datasheet	ISL51002 Datasheet

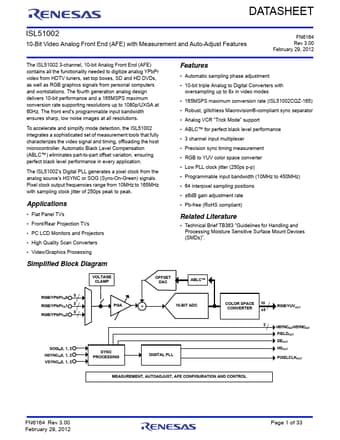

Additional preview pages of the ISL51002 datasheet.

FN6164 Rev 3.00 February 29, 2012 The ISL51002 3-channel, 10-bit Analog Front End (AFE) contains all the functionality needed to digitize analog YPbPr video from HDTV tuners, set top boxes, SD and HD DVDs, as well as RGB graphics signals from personal computers and workstations. The fourth generation analog design delivers 10-bit performance and a 165MSPS maximum conversion rate supporting resolutions up to 1080p/UXGA at 60Hz. The front end's programmable input bandwidth ensures sharp, low noi.
