ISL55162 SOC Dual Channel 300MHz Pin Electronics/DAC/PMU/Deskew

ISL55162 Description

ISL55162 SOC Dual Channel 300MHz Pin Electronics/DAC/ PMU/Deskew ISL55162 * Deskew The ISL55162 is a highly integrated System-on-a-Chip (S.

ISL55162 Features

* Pin Electronics Driver/Comparator - 3 Level Driver (DVH/DVL/VTT) - Selectable On-Chip Terminations for Inputs - 50: Series Termination for Comparator Outputs
* Lead Free Package - 8V Driver Output Swings - 64-Lead, 10mmx10mm TQFP with Top Exposed Heat Slug - 16V Comparator Inpu

ISL55162 Applications

* Automated Test Equipment
* Instrumentation - 8 Current Ranges (32mA, 8mA, 2mA, 512PA, 128PA, 32PA, 8mA, 2PA)
* ASIC Verifiers - +13V Super Voltage Capability - FI Voltage Clamps - Resistive Load (8 selectable resistor values) 2 DATA_0 2 EN_0 DVH-0 DVL-0 VTT-0 2 COMP

📥 Download Datasheet

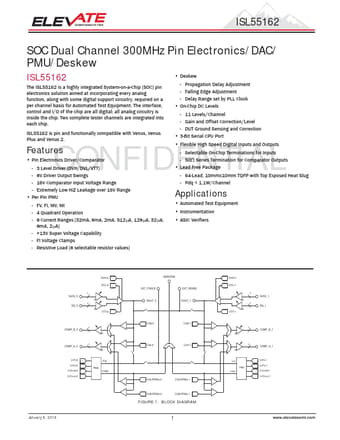

Preview of ISL55162 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ISL55162
Manufacturer
Elevate
File Size
1.42 MB
Datasheet
ISL55162-Elevate.pdf
Description
SOC Dual Channel 300MHz Pin Electronics/DAC/PMU/Deskew
