ISL55100A - Quad 18V Pin Electronics Driver/Window Comparator

Product Overview

Renesas

Datasheet Details

Part number	ISL55100A
Manufacturer	Renesas
File Size	880.46 KB
Description	Quad 18V Pin Electronics Driver/Window Comparator

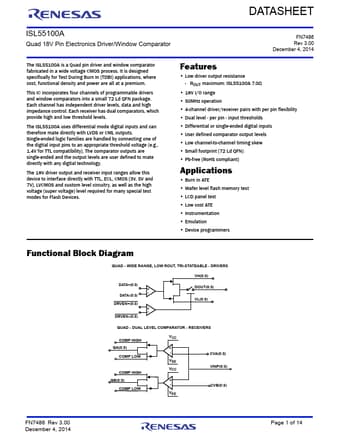

Datasheet	ISL55100A Datasheet
Additional preview pages of the ISL55100A datasheet.

Product details

Description

PIN NAME FUNCTION DATA+(0:3) Positive differential digital input that determines the driver output state when it is enabled.DATA-(0:3) Negative differential digital input that determines the driver output state when it is enabled.DRV EN+(0:3) Positive differential digital input that enables or disables the corresponding driver.DRV EN-(0:3) Negative differential digital input that enables or disables the corresponding driver.QA (0:3) Comparator digital outputs.QA(X) is high when VINP

Features

Low driver output resistance - ROUT maximum: ISL55100A 7.0Ω.
18V I/O range.
50MHz operation.
4-channel driver/receiver pairs with per pin flexibility.
Dual level - per pin - input thresholds.
Differential or single-ended digital inputs.
User defined comparator output levels.
Low channel-to-channel timing skew.
Small footprint (72 Ld QFN).
Pb-free (RoHS compliant).
