ISL55112 High-Speed Dual Precision CCD Driver

PIN NUMBER 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 PIN NAME RGIN H1IN PD ROIC EN H2IN HLIN HL_VP HL_OUT HL_VN VPLUS VSUB H2_VN H2_OUT H2_VP DNC H1_VP H1_OUT H1_VN GND VDD RG_VN RG_OUT RG_VP FUNCTION Logic input for the Reset Gate (low capacitance) driver. Logic input for the .

www.DataSheet4U.com High-Speed Dual Precision CCD Driver ISL55112 The ISL55112 is a high-speed CCD array driver comprising 2 Horizontal drivers with high current output drive and 2 ancillary signal drivers with lower current output drive. The devices can be used in pairs to drive and control two halves of a high pixel count CCD array as used in high end Digital Cameras or Camcorders. The device has a largely symmetric pinout about a center axis to facilitate the placement of the devices on eith.

ISL55112 Features

* 2 Horizontal Row Drivers (High Current)

* 2 Ancillary Drivers (Lower Current)

* Up to 8V Signal Swing

* Unipolar and Bipolar Supply Capability

* Adjustable Output Impedance for EMI Control

* 3V Logic Interface

* Low Propagation Delays

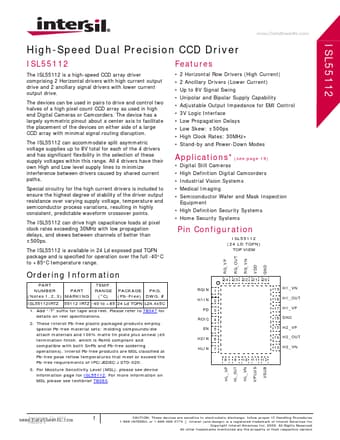

ISL55112_IntersilCorporation.pdf

ISL55112 Datasheet Preview — Preview of ISL55112 PDF

Datasheet Details

Part number:

ISL55112

Manufacturer:

Intersil Corporation

File Size:

521.60 KB

Description:

High-speed dual precision ccd driver.
