ISL5640

3V Dual 8-Bit/ 20/40/60MSPS A/D Converter with Internal Voltage Reference

ISL5640 Features

* a 9-stage pipeline architecture. The fully pipelined architecture and an innovative input stage enable the ISL5640 to accept a variety of input configurations, singleended or fully differential. Only one external clock is necessary to drive both converters and an internal band-gap voltage reference i

ISL5640 General Description

PIN NO. 1 2 3 4 NAME AGND IIN+ IINDFS DESCRIPTION Analog Ground I-Channel Positive Analog Input I-Channel Negative Analog Input Data Format Select (Low for Offset Binary and High for Twos Complement Output Format) I-Channel Voltage Reference Input +1.25V Reference Voltage Output (Decouple with 0.1µ.

ISL5640 Datasheet (92.74 KB)

Preview of ISL5640 PDF

Datasheet Details

Part number:

ISL5640

Manufacturer:

Intersil Corporation

File Size:

92.74 KB

Description:

3v dual 8-bit/ 20/40/60msps a/d converter with internal voltage reference.

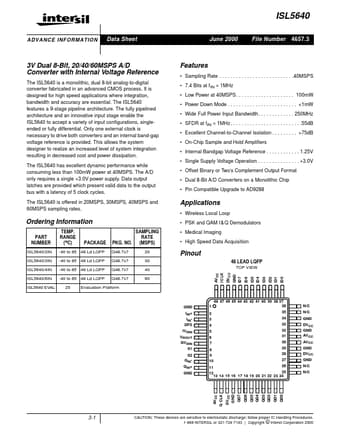

ISL5640 ADV ANCE I NF O R MA T ION Data Sheet June 2000 File Number 4657.3 3V Dual 8-Bit, 20/40/60MSPS A/D Converter with Internal Voltage Refere.
