ISL5727

Dual 10-bit 3.3V 260MSPS High Speed D/A Converter

ISL5727 Features

* Low Power . . . . . 233mW with 20mA Output at 130MSPS

* Adjustable Full Scale Output Current . . . . . 2mA to 20mA

* Guaranteed Gain Matching < 0.14dB

* +3.3V Power Supply

* 3V LVCMOS Compatible Inputs

* Excellent Spurious Free Dynamic Range (70dBc t

ISL5727 General Description

PIN NO. 11, 19, 26 13, 24 28 27 10 20 14, 23 12, 25 1-4, 29-38, 43-48 15, 22 16, 21 17 18 5-8, 39-42 9 PIN NAME AGND AVDD CLK DGND DVDD FSADJ NC ICOMP, QCOMP ID9-ID0, QD9-QD0 IOUTA, QOUTA IOUTB, QOUTB REFIO REFLO NC SLEEP Analog ground. Analog supply (+2.7V to +3.6V). Clock input. Connect to digita.

ISL5727 Datasheet (698.80 KB)

Preview of ISL5727 PDF

Datasheet Details

Part number:

ISL5727

Manufacturer:

Intersil Corporation

File Size:

698.80 KB

Description:

Dual 10-bit 3.3v 260msps high speed d/a converter.

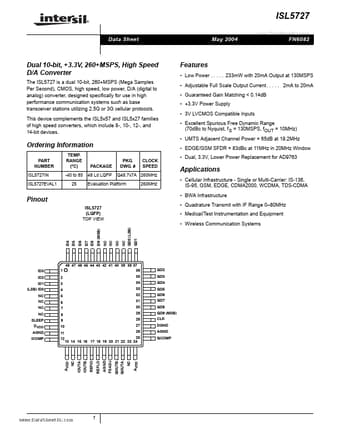

® ISL5727 www.DataSheet4U.com Data Sheet May 2004 FN6082 Dual 10-bit, +3.3V, 260+MSPS, High Speed D/A Converter The ISL5727 is a dual 10-bit, 260.
