ISL5729 Datasheet - Renesas

ISL5729 High Speed D/A Converter

PIN NO. PIN NAME PIN DESCRIPTION 11, 19, 26 AGND Analog ground. 13, 24 28 AVDD CLK Analog supply (+2.7V to +3.6V). Clock input. 27 DGND Connect to digital ground. 10 20 14, 23 DVDD FSADJ NC Digital supply (+2.7V to +3.6V). Full scale current adjust. Use a resistor to ground to adjust.

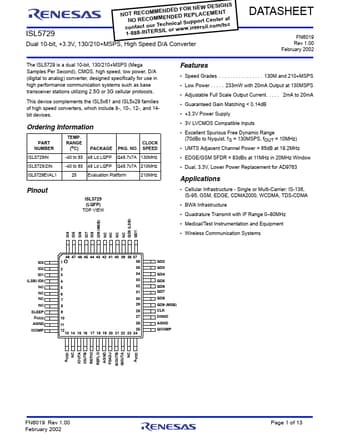

ISL5729 NOc1NoT-8nOR8ta8ERc-CEItNOCoTOuMErMMRTMSEeINcELhDNonEDricDEwaDFwl OSRwuRE.ipnPNptLeEoArrWsCtiClED.ceMEonESmteNIG/rtTsNactS Dual 10-bit, +3.3V, 130/210+MSPS, High Speed D/A Converter DATASHEET FN6019 Rev 1.00 February 2002 The ISL5729 is a dual 10-bit, 130/210+MSPS (Mega Samples Per Second), CMOS, high speed, low power, D/A (digital to analog) converter, designed specifically for use in high performance communication systems such as base transceiver stations utilizing 2.5G or 3G cellu.

ISL5729 Datasheet (924.66 KB)

Preview of ISL5729 PDF

Datasheet Details

Part number:

ISL5729

Manufacturer:

Renesas ↗

File Size:

924.66 KB

Description:

High speed d/a converter.
