ISL5740

3V Dual 10-Bit/ 20/40/60MSPS A/D Converter with Internal Voltage Reference

ISL5740 Features

* a 9-stage pipeline architecture. The fully pipelined architecture and an innovative input stage enable the ISL5740 to accept a variety of input configurations, singleended or fully differential. Only one external clock is necessary to drive both converters and an internal band-gap voltage reference i

ISL5740 General Description

PIN NO. 1 2 3 4 NAME AGND IIN+ IINDFS DESCRIPTION Analog Ground I-Channel Positive Analog Input I-Channel Negative Analog Input Data Format Select (Low for Offset Binary and High for Twos Complement Output Format) I-Channel Voltage Reference Input +1.25V Reference Voltage Output (Decouple with 0.1µ.

ISL5740 Datasheet (97.09 KB)

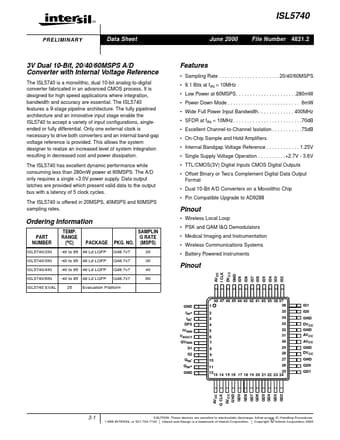

Preview of ISL5740 PDF

Datasheet Details

Part number:

ISL5740

Manufacturer:

Intersil Corporation

File Size:

97.09 KB

Description:

3v dual 10-bit/ 20/40/60msps a/d converter with internal voltage reference.
ISL5740 TM P RE L I M I NA R Y Data Sheet June 2000 File Number 4821.2 3V Dual 10-Bit, 20/40/60MSPS A/D Converter with Internal Voltage Referenc.
