ISL5123, ISL5120 Datasheet - Renesas

ISL5123 SPDT Analog Switches

DATASHEET ISL5120, ISL5121, ISL5122, ISL5123 Low Voltage, Single Supply, Dual SPST, SPDT Analog Switches FN6022 Rev 8.00 August 12, 2015 The Intersil ISL5120, ISL5121, ISL5122, ISL5123 devices are precision, bidirectional, dual analog switches designed to operate from a single +2.7V to +12V supply. Targeted applications include battery powered equipment that benefit from the devices’ low power consumption (5µW), low leakage currents (100pA max), and fast switching speeds (tON = 28ns, tOFF = 2.

ISL5120-Renesas.pdf

This datasheet PDF includes multiple part numbers: ISL5123, ISL5120. Please refer to the document for exact specifications by model.

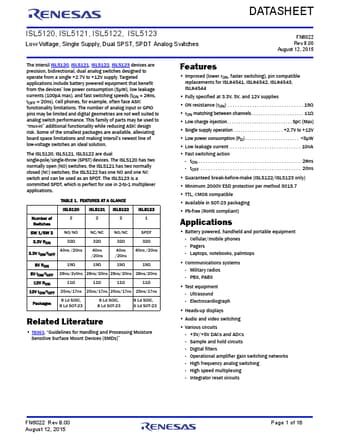

ISL5123 Datasheet Preview Page 2 ISL5123 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL5123, ISL5120

Manufacturer:

Renesas ↗

File Size:

838.96 KB

Description:

Spdt analog switches.

Note:

This datasheet PDF includes multiple part numbers: ISL5123, ISL5120.
Please refer to the document for exact specifications by model.
