ISL55141 Datasheet - Renesas

ISL55141 High-Speed 18V CMOS Comparators

DATASHEET ISL55141, ISL55142, ISL55143 High-Speed 18V CMOS Comparators ISL55141, ISL55142, ISL55143 integrated circuits are high-speed, wide input common-mode range comparators. They provide three-state window comparators in a high voltage CMOS process (18V). Each comparator has dual receive thresholds, CVA and CVB, for establishing minimum 1-VIH and maximum 0-VIL voltage levels. These devices can accept inputs from a number of logic families, such as TTL, ECL, CMOS, LVCMOS, LVDS and CML. Two b.

ISL55141-Renesas.pdf

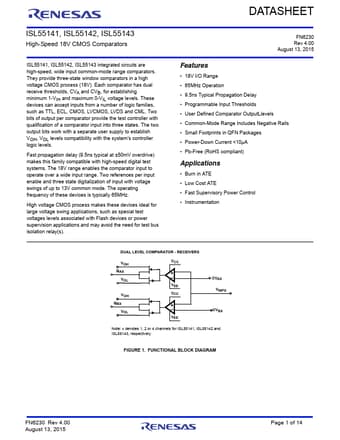

Preview of ISL55141 PDF
ISL55141 Datasheet Preview Page 2 ISL55141 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL55141

Manufacturer:

Renesas ↗

File Size:

715.77 KB

Description:

High-speed 18v cmos comparators.
