ISL55110 - High Speed MOSFET Driver

Product Overview

Renesas

Datasheet Details

Part number	ISL55110
Manufacturer	Renesas
File Size	918.76 KB
Description	High Speed MOSFET Driver
Datasheet	ISL55110 Datasheet

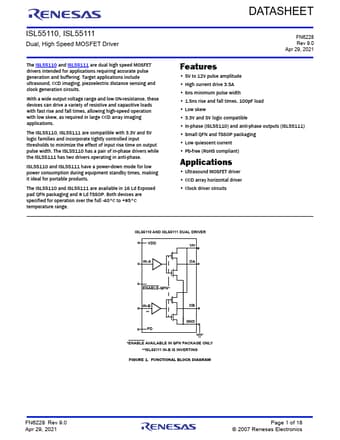

Additional preview pages of the ISL55110 datasheet.

Product details

Description

16 LD QFN 8 LD TSSOP PIN 1 1 VDD 10 6 VH 11 7 GND 3 2 PD 2 - ENABLE 5 4 4 3 9 5 12 8 6, 7, 8, 13, 14, - 15, 16 EP - IN-A IN-B, IN-B OA OB NC EP FUNCTION Logic power.Driver high rail supply.Ground, return for both VH rail and VDD logic supply.This is also the potential of the QFN’s exposed pad (EP).Power-down.Active logic high places part in power-down mode.QFN packages only.When the ENABLE pin is low, the device will operate normally (outputs controlled by

Features

5V to 12V pulse amplitude.
High current drive 3.5A.
6ns minimum pulse width.
1.5ns rise and fall times, 100pF load.
Low skew.
3.3V and 5V logic compatible.
In-phase (ISL55110) and anti-phase outputs (ISL55111).
Small QFN and TSSOP packaging.
Low quiescent current.
Pb-free (RoHS compliant).
