ISL55100B Datasheet - Renesas

ISL55100B Quad 18V Pin Electronics Driver/Window Comparator

DATASHEET ISL55100B Quad 18V Pin Electronics Driver/Window Comparator FN6229 Rev 2.00 December 4, 2014 The ISL55100B is a Quad pin driver and window comparator fabricated in a wide voltage CMOS process. It is designed specifically for Test During Burn-In (TDBI) applications, where cost, functional density and power are all at a premium. This IC incorporates four channels of programmable drivers and window comparators into a small 72 Ld QFN package. Each channel has independent driver levels, .

ISL55100B Datasheet (848.38 KB)

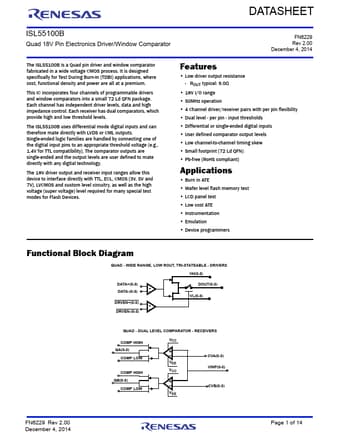

Preview of ISL55100B PDF

Datasheet Details

Part number:

ISL55100B

Manufacturer:

Renesas ↗

File Size:

848.38 KB

Description:

Quad 18v pin electronics driver/window comparator.
