ISL55143 - High-Speed 18V CMOS Comparators

Product Overview

Renesas

Datasheet Details

Part number	ISL55143
Manufacturer	Renesas
File Size	715.77 KB
Description	High-Speed 18V CMOS Comparators
Datasheet	ISL55143 Datasheet
Note	This datasheet PDF includes multiple part numbers: ISL55143, ISL55141. Please refer to the document for exact specifications by model.

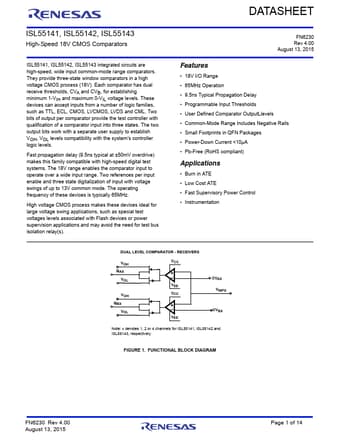

Additional preview pages of the ISL55143 datasheet.

Product details

Description

PIN FUNCTION VEE QAX QBX VOL VOH VCC Negative supply input Channel A, CVAX reference driven.Comparator output.Channel B, CVBX reference driven.Comparator output.Comparator output logic low supply.Unbuffered analog input that sets all QAX, QBX “low” voltage level.Comparator output logic high supply.Unbuffered analog input that sets all QAX, QBX “high” voltage level.Positive supply input.CVAX VINPX CVBX PD NC Channel A comparator reference analog input.Window comparator input.Com

Features

18V I/O Range.
65MHz Operation.
9.5ns Typical Propagation Delay.
Programmable Input Thresholds.
User Defined Comparator OutputLlevels.
Common-Mode Range Includes Negative Rails.
Small Footprints in QFN Packages.
Power-Down Current.
