ISL59445 - 1GHz Triple Multiplexing Amplifiers

ISL59445 Description

ISL59424, ISL59445 1GHz Triple Multiplexing Amplifiers The ISL59424, ISL59445 are 1GHz bandwidth multiplexing amplifiers designed primarily for video.

ISL59445 Features

* Triple 2:1 and 4:1 Multiplexers for RGB
* Internally Set Gain-of-1
* High Speed Three-state Outputs (HIZ)
* Power-down Mode (EN)
* Latch Enable (ISL59424)
* ±5V Operation
* ±1200 V/µsec Slew Rate
* 1GHz Bandwidth
* Latched Sel

ISL59445 Applications

* HDTV/DTV Analog Inputs
* Video Projectors
* Computer Monitors
* Set-top Boxes
* Security Video
* Broadcast Video Equipment Ordering Information PART NUMBER (Notes 1, 2, 3) PART MARKING PACKAGE PKG. (Pb-Free) DWG. # ISL59424IRZ 59424 IRZ 24 Ld

📥 Download Datasheet

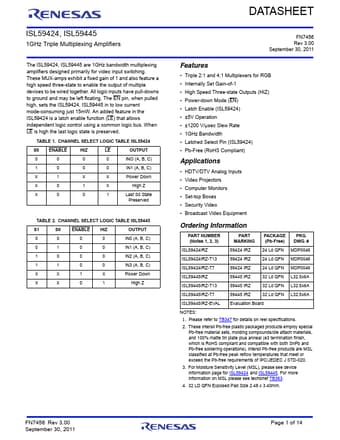

Preview of ISL59445 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ISL59445
Manufacturer
Renesas ↗
File Size
664.71 KB
Datasheet
ISL59445-Renesas.pdf
Description
1GHz Triple Multiplexing Amplifiers
