ISL6540A Datasheet - Renesas

ISL6540A Single-Phase Buck PWM Controller

DATASHEET ISL6540A Single-Phase Buck PWM Controller with Integrated High Speed MOSFET Driver and Pre-Biased Load Capability FN6288 Rev 5.00 Oct 7, 2008 VCC MARCTRL PG_DLY PG EN VFF VIN The ISL6540A is an improved version of the ISL6540 single-phase voltage-mode PWM controller with input voltage feed-forward compensation to maintain a constant loop gain for optimal transient response, especially for applications with a wide input voltage range. Its integrated high speed synchronous rectified .

ISL6540A Features

* provide complete control and protection for a DC/DC converter with minimum external components, resulting in minimum cost and less engineering design efforts. The output voltage of the converter can be precisely regulated with an internal reference voltage of 0.591V, and has an improved system toler

ISL6540A Datasheet (0.96 MB)

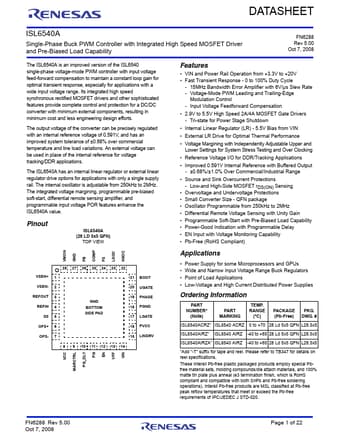

Preview of ISL6540A PDF

Datasheet Details

Part number:

ISL6540A

Manufacturer:

Renesas ↗

File Size:

0.96 MB

Description:

Single-phase buck pwm controller.
