ISL6548A Datasheet - Renesas

ISL6548A ACPI Regulator/Controller

DATASHEET ISL6548A ACPI Regulator/Controller for Dual Channel DDR Memory Systems FN9189 Rev 2.00 January 3, 2006 The ISL6548A provides a complete ACPI compliant power solution for up to 4 DIMM dual channel DDR/DDR2 Memory systems. Included are both a synchronous buck controller to supply VDDQ during S0/S1 and S3 states. During S0/S1 state, a fully integrated sink-source regulator generates an accurate (VDDQ/2) high current VTT voltage without the need for a negative supply. A second PWM contr.

ISL6548A Datasheet (777.50 KB)

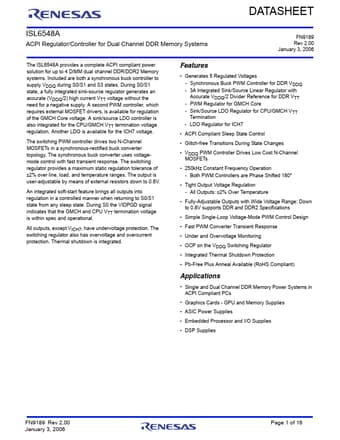

Preview of ISL6548A PDF

Datasheet Details

Part number:

ISL6548A

Manufacturer:

Renesas ↗

File Size:

777.50 KB

Description:

Acpi regulator/controller.
