ISL6548 ACPI Regulator/Controller

ISL6548 NOT RECOMMENDED FOR NEW DESIGNS NO RECOMMENDED REPLACEMENT contact our Technical Support Center at 1-888-INTERSIL or www.intersil.com/tsc ACPI Regulator/Controller for Dual Channel DDR Memory Systems DATASHEET FN9188 Rev 2.00 January 3, 2006 VDDQ DDR_VTTSNS DRIVE2_U FB2 VIDPGD DRIVE2_L VREF_IN The ISL6548 provides a complete ACPI compliant power solution for up to 4 DIMM dual channel DDR/DDR2 Memory systems. Included are both a synchronous buck controller to supply VDDQ during S0/S1.

ISL6548-Renesas.pdf

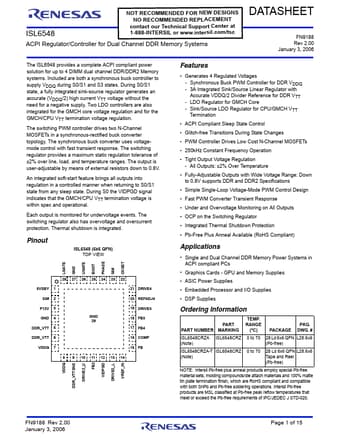

ISL6548 Datasheet Preview — Preview of ISL6548 PDF

Datasheet Details

Part number:

ISL6548

Manufacturer:

Renesas ↗

File Size:

737.04 KB

Description:

Acpi regulator/controller.
