ISL6625A Datasheet - Renesas

ISL6625A Synchronous Rectified Buck MOSFET Drivers

ISL6625A Synchronous Rectified Buck MOSFET Drivers The ISL6625A is a high frequency MOSFET driver designed to drive upper and lower power N-Channel MOSFETs in a synchronous rectified buck converter topology. In ISL6625A, the upper and lower gates are both driven to an externally applied voltage. This provides the capability to optimize applications involving trade-offs between gate charge and conduction losses. An advanced adaptive shoot-through protection is integrated to prevent both the upper.

ISL6625A-Renesas.pdf

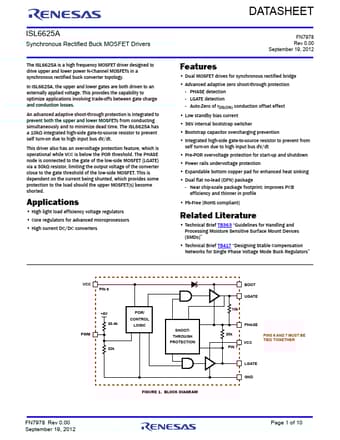

Preview of ISL6625A PDF
ISL6625A Datasheet Preview Page 2 ISL6625A Datasheet Preview Page 3

Datasheet Details

Part number:

ISL6625A

Manufacturer:

Renesas ↗

File Size:

583.76 KB

Description:

Synchronous rectified buck mosfet drivers.
