ISL78223

ZVS Full-Bridge PWM Controller

Renesas

ISL78223 Features

* complemented PWM outputs for Synchronous Rectifier (SR) control. The complemented outputs can be dynamically advanced or delayed relative to the PWM outputs using an external control voltage. This advanced BiCMOS design features precision deadtime and resonant delay control and an oscillator adjusta

ISL78223 General Description

PIN NUMBER 1 2 3 4 5 6 7 8 9 10 PIN NAME VREF VERR CTBUF RTD RESDEL CT FB RAMP CS IOUT DESCRIPTION The 5V reference voltage output with 3% tolerance over line, load, and operating temperature. Bypass to GND with a 0.1µF to 2.2µF low ESR capacitor. The control voltage input to the inverting input.

ISL78223 Datasheet (1.33 MB)

ISL78223 Datasheet Preview — Preview of ISL78223 PDF

Datasheet Details

Part number:

ISL78223

Manufacturer:

Renesas ↗

File Size:

1.33 MB

Description:

Zvs full-bridge pwm controller.

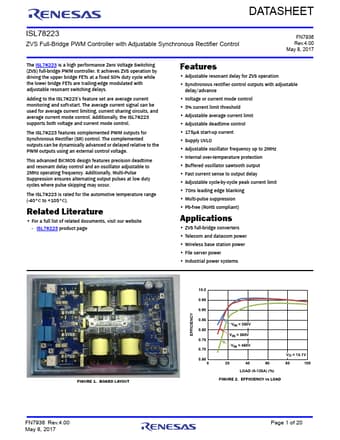

DATASHEET ISL78223 ZVS Full-Bridge PWM Controller with Adjustable Synchronous Rectifier Control FN7936 Rev.4.00 May 8, 2017 The ISL78223 is a high .
