ISL78845ASEH

High Performance Industry Standard Single-Ended Current Mode PWM Controller

Intersil

Download Datasheet (946.27 KB)

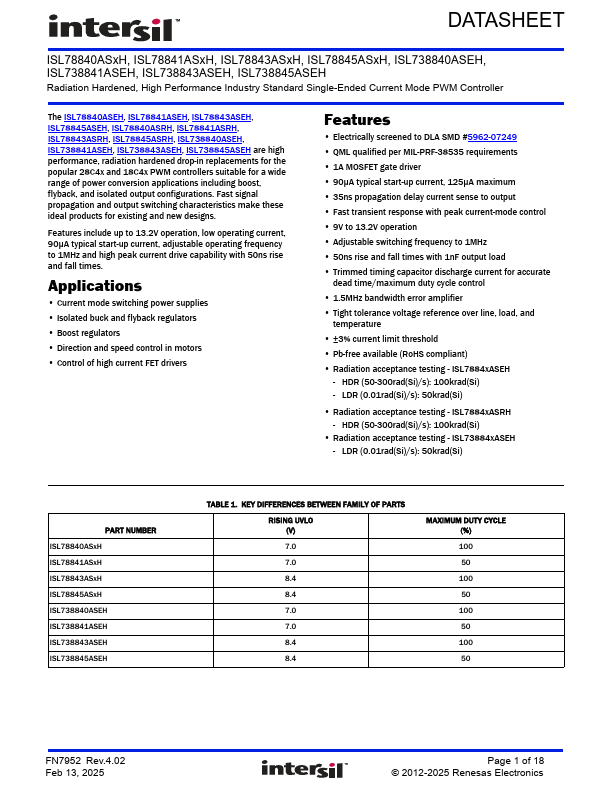

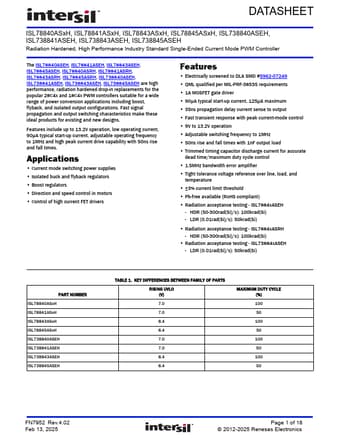

ISL78845ASEH Datasheet Preview — Preview of ISL78845ASEH Datasheet

Datasheet Details

Part number:

ISL78845ASEH

Manufacturer:

Intersil

File Size:

946.27 KB

Description:

High performance industry standard single-ended current mode pwm controller.
DATASHEET ISL78840ASxH, ISL78841ASxH, ISL78843ASxH, ISL78845ASxH, ISL738840ASEH, ISL738841ASEH, ISL.

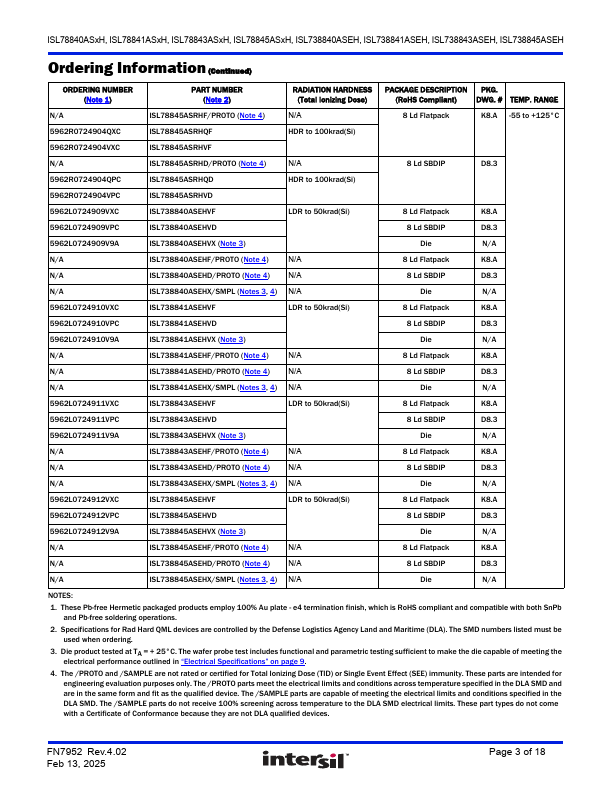

PKG. (RoHS Compliant) DWG. # TEMP. RANGE 8 Ld SBDIP D8.3 -55 to +125°C 8 Ld Flatpack K8.A Die .

✔ ISL78845ASEH Features

include up to 13.2V operation, low operating current, 90µA typical start-up current, adjustable operating frequency to 1MHz and high peak current drive capability with 50

✔ ISL78845ASEH Application

including boost, flyback, and isolated output configurations. Fast signal propagation and output switching c
