ISL78100 Datasheet - Renesas

ISL78100 High Power LED Driver

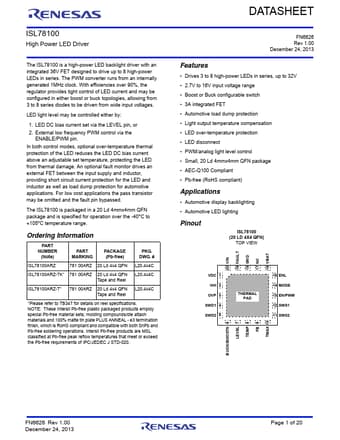

ISL78100 High Power LED Driver The ISL78100 is a high-power LED backlight driver with an integrated 36V FET designed to drive up to 8 high-power LEDs in series. The PWM converter runs from an internally generated 1MHz clock. With efficiencies over 90%, the regulator provides tight control of LED current and may be configured in either boost or buck topologies, allowing from 3 to 8 series diodes to be driven from wide input voltages. LED light level may be controlled either by: 1. LED DC bias cu.

ISL78100-Renesas.pdf

Preview of ISL78100 PDF
ISL78100 Datasheet Preview Page 2 ISL78100 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL78100

Manufacturer:

Renesas ↗

File Size:

1.15 MB

Description:

High power led driver.
