ISL78113A Low Input Voltage and High Efficiency Synchronous Boost Converter

PIN NUMBERS SYMBOL PIN DESCRIPTION 1 PGND Power ground. 2 VOUT Device output. 3 NC No connection. 4 FB Feedback pin of the converter. Connect voltage divider resistors between VOUT, FB and GND for desired output. 5 EN The EN pin is an active-HIGH logic input for enabling the device. Whe.

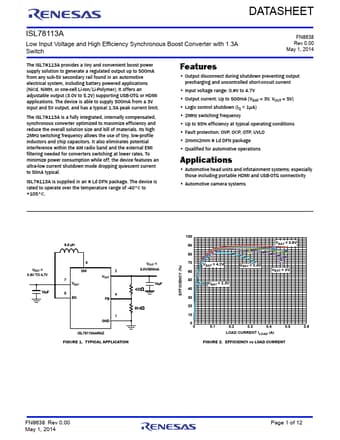

DATASHEET ISL78113A Low Input Voltage and High Efficiency Synchronous Boost Converter with 1.3A Switch FN8638 Rev 0.00 May 1, 2014 The ISL78113A provides a tiny and convenient boost power supply solution to generate a regulated output up to 500mA from any sub-5V secondary rail found in an automotive electrical system, including battery powered applications (NiCd, NiMH, or one-cell Li-Ion/Li-Polymer). It offers an adjustable output (3.0V to 5.2V) supporting USB-OTG or HDMI applications. The de.

ISL78113A Features

* an ultra-low current shutdown mode dropping quiescent current to 50nA typical. ISL78113A is supplied in an 8 Ld DFN package. The device is rated to operate over the temperature range of -40°C to +105°C. Features

* Output disconnect during shutdown preventing output precharging and uncontrol
