ISL78223 Datasheet, Controller, Intersil

ISL78223 Features

• Controller complemented PWM outputs for synchronous rectifier (SR) control. The complemented outputs may be dynamically advanced or delayed relative to the PWM outputs using an external control vo

PDF File Details

Part number:

ISL78223

Manufacturer:

Intersil

File Size:

605.14kb

Download:

📄 Datasheet

Description:

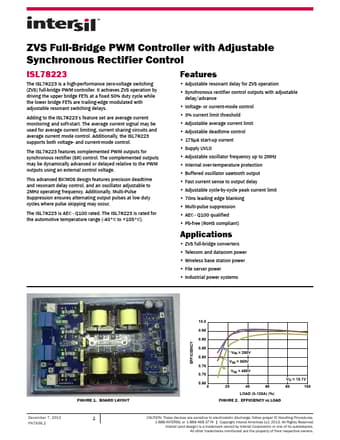

Zvs full-bridge pwm controller. PIN NUMBER 1 SYMBOL VREF 2 VERR 3 CTBUF 4 RTD 5 RESDEL 6 CT 7 FB 8 RAMP 9 CS ISL78223 ISL78223 (20 LD QSOP) TOP

ISL78223 Application

• Applications
• ZVS full-bridge converters
• Telecom and datacom power
• Wireless base station power
• File server po
