ISL78200 Datasheet - Renesas

ISL78200 2.5A Regulator

ISL78200 NORTECROEMCOMMENMDEENIDSDLER7DE8P2FL0OA1RCNEEMWENDTEPSAIGRNTS 2.5A Regulator with Integrated High-Side MOSFET for Synchronous Buck or Boost Buck Converter DATASHEET FN7641 Rev 2.00 December 24, 2013 The ISL78200 is a synchronous buck controller with a 90mΩ high-side MOSFET and low-side driver integrated. The ISL78200 supports wide input range of 3V to 40V in buck mode. It supports 2.5A continuous load under conditions of 5V VOUT, VIN range of 8V to 36V, 500kHz and +85°C ambient temp.

ISL78200-Renesas.pdf

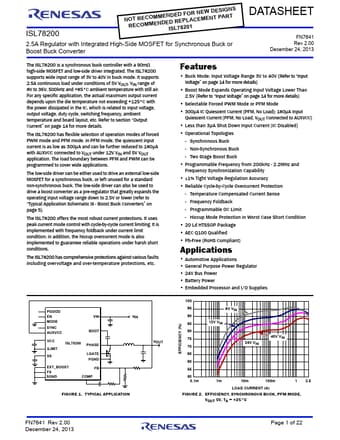

Preview of ISL78200 PDF
ISL78200 Datasheet Preview Page 2 ISL78200 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL78200

Manufacturer:

Renesas ↗

File Size:

1.29 MB

Description:

2.5a regulator.
