ISL78211 Datasheet - Renesas

ISL78211 Automotive Single-Phase Core Regulator

ISL78211 NOT RECOMMENDED FOR NEW DESIGNS NO RECOMMENDED REPLACEMENT contact our Technical Support Center at 1-888-INTERSIL or www.intersil.com/tsc Automotive Single-Phase Core Regulator for IMVP-6™ CPUs DATASHEET FN7578 Rev 1.00 December 4, 2013 The ISL78211 is a single-phase buck regulator implementing lntel™ IMVP-6™ protocol, with embedded gate drivers. lntel™ Mobile Voltage Positioning (IMVP) is a smart voltage regulation technology effectively reducing power dissipation in lntel™ Pentium.

ISL78211-Renesas.pdf

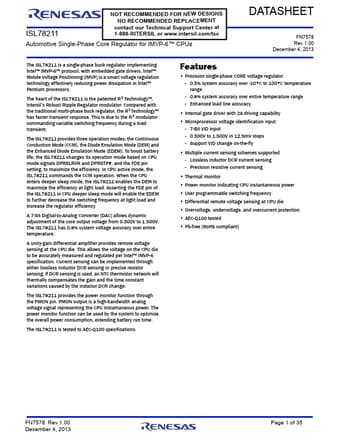

Preview of ISL78211 PDF
ISL78211 Datasheet Preview Page 2 ISL78211 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL78211

Manufacturer:

Renesas ↗

File Size:

1.94 MB

Description:

Automotive single-phase core regulator.
