ISL78213 High Efficiency Synchronous Buck Regulator

DATASHEET ISL78213 3A Low Quiescent Current, High Efficiency Synchronous Buck Regulator FN7550 Rev 3.00 May 12, 2015 The ISL78213 is a high efficiency, monolithic, synchronous step-down DC/DC converter that can deliver up to 3A continuous output current from a 2.8V to 5.5V input supply. It uses a current control architecture to deliver very low duty cycle operation at high frequency with fast transient response and excellent loop stability. The ISL78213 integrates a pair of low ON-resistance .

ISL78213-Renesas.pdf

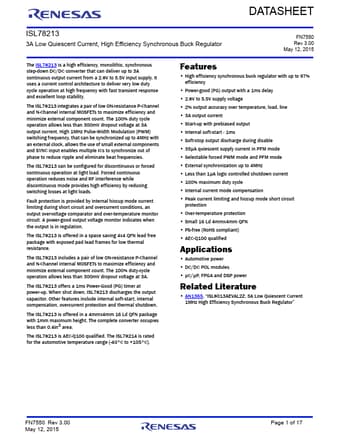

Preview of ISL78213 PDF
ISL78213 Datasheet Preview Page 2 ISL78213 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL78213

Manufacturer:

Renesas ↗

File Size:

2.14 MB

Description:

High efficiency synchronous buck regulator.
