ISL78841ASRH

High Performance Industry Standard Single-Ended Current Mode PWM Controller

Intersil

📥 Download PDF (946.27 KB)

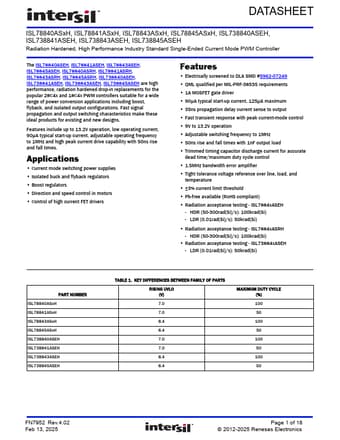

ISL78841ASRH Datasheet Preview Page 1 — Preview of ISL78841ASRH Datasheet

Datasheet Details

Part number:

ISL78841ASRH

Manufacturer:

Intersil

File Size:

946.27 KB

Download:

📄 Download ISL78841ASRH Datasheet PDF

Description:

High performance industry standard single-ended current mode pwm controller.
DATASHEET ISL78840ASxH, ISL78841ASxH, ISL78843ASxH, ISL78845ASxH, ISL738840ASEH, ISL738841ASEH, ISL.

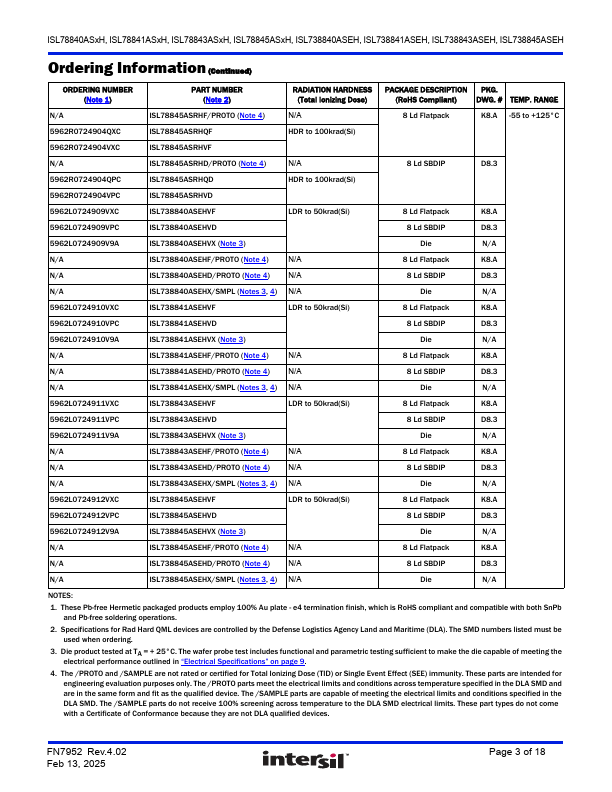

PKG. (RoHS Compliant) DWG. # TEMP. RANGE 8 Ld SBDIP D8.3 -55 to +125°C 8 Ld Flatpack K8.A Die .

✔ ISL78841ASRH Features

include up to 13.2V operation, low operating current, 90µA typical start-up current, adjustable operating frequency to 1MHz and high peak current drive capability with 50

✔ ISL78841ASRH Application

including boost, flyback, and isolated output configurations. Fast signal propagation and output switching c
