ISL78022, ISL78020 - Automotive Grade TFT-LCD DC/DC

ISL78022 Description

DATASHEET ISL78020, ISL78022 Automotive Grade TFT-LCD DC/DC with Integrated Amplifiers FN6386 Rev 3.00 December 23, 2013 The ISL78020 and ISL78022 .

ISL78022 Applications

* The boost converter in the ISL78020 and ISL78022 is a current mode PWM type integrating an 18V N-Channel MOSFET. Operating at 1.2MHz, this boost converter can operate in either P-Mode for superior transient response, or in PI-Mode for tighter output regulation. Using external low-cost transistors,

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ISL78022, ISL78020. Please refer to the document for exact specifications by model.

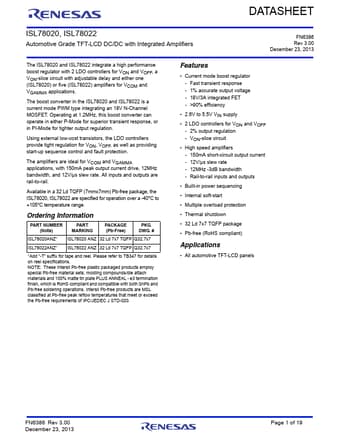

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ISL78022, ISL78020
Manufacturer
Renesas ↗
File Size
796.27 KB
Datasheet
ISL78020-Renesas.pdf
Description
Automotive Grade TFT-LCD DC/DC
Note
This datasheet PDF includes multiple part numbers: ISL78022, ISL78020.
Please refer to the document for exact specifications by model.
