ISL78226 Datasheet - Renesas

ISL78226 6-Phase 12V/48V Bidirectional Synchronous PWM Controller

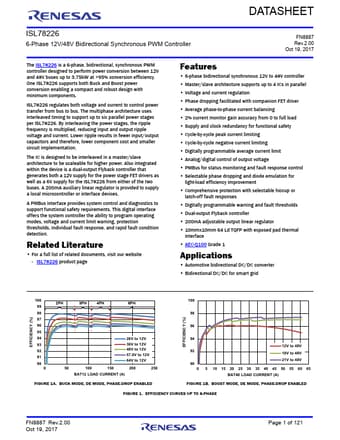

DATASHEET ISL78226 6-Phase 12V/48V Bidirectional Synchronous PWM Controller FN8887 Rev.2.00 Oct 19, 2017 The ISL78226 is a 6-phase, bidirectional, synchronous PWM controller designed to perform power conversion between 12V and 48V buses up to 3.75kW at >95% conversion efficiency. One ISL78226 supports both Buck and Boost power conversion enabling a compact and robust design with minimum components. ISL78226 regulates both voltage and current to control power transfer from bus to bus. The mult.

ISL78226-Renesas.pdf

Preview of ISL78226 PDF
ISL78226 Datasheet Preview Page 2 ISL78226 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL78226

Manufacturer:

Renesas ↗

File Size:

5.51 MB

Description:

6-phase 12v/48v bidirectional synchronous pwm controller.
