ISL78229

2-Phase Boost Controller

Renesas

ISL78229 Features

* Input/output voltage range: 5V to 55V, withstands 60V transients

* Supports synchronous or standard boost topology

* Peak current mode control with adjustable slope compensation

* Secondary average current control loop

* Integrated 5V 2A sourcing/3A sinking

ISL78229 General Description

. . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Typical Application - 2-Phase Synchronous Boost . . . . . . . . .

ISL78229 Datasheet (3.29 MB)

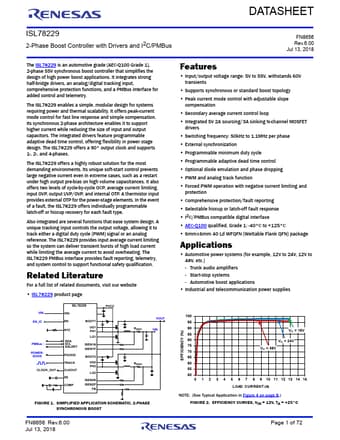

ISL78229 Datasheet Preview — Preview of ISL78229 PDF

Datasheet Details

Part number:

ISL78229

Manufacturer:

Renesas ↗

File Size:

3.29 MB

Description:

2-phase boost controller.
DATASHEET ISL78229 2-Phase Boost Controller with Drivers and I2C/PMBus FN8656 Rev.6.00 Jul 13, 2018 The ISL78229 is an automotive grade (AEC-Q100 G.
